Evo Design - structural design Calculation No.
001-FOUNDATION
INTERACTIVE ONLINE CALCULATION SHEET Project No.
            onlinestructuraldesign.com SAMPLE CALCULATION
Project Title: Foundation calculation - interactive design spreadsheet   Calc. By Date Rev.
                  MN 16.04.2014 0
Subject/Feature: Foundation design; Foundation maximum soil pressure calculation   Checked By Date
  Imperial Units spreadsheet   CN 16.04.2014

Input  Output
Working loads Eccentricity
Footing dimensions Max. pressure on soil under foundation
Pier dimensions
Materials (soil, concrete)

Maximum Factored Loads
N = kip axial force       Pair of maximum loads. Mx and My are not
M = kip-ft bending moment       considered simultaneous.
F = kip horizontal force on top of foundation (shear)

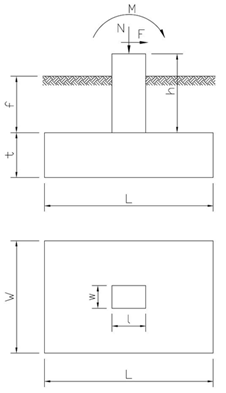

                notatie fundatii.jpg
Footing Dimensions
L = ft Foundation base length
W = ft Foundation base width
t = 1.5 ft Foundation base thickness
  (parameters that can not be modified in the demo version)
f = ft Depth to top of foundation base
Pier Dimensions
l = ft pier dimension along X
w = ft pier dimension along Z
h = ft pier height

Materials
gfill = pcf (unit weight of fill material)
gconcrete = pcf (unit weight of concrete)

General Calculations
Af = L * W = ft2 Foundation Area
Ap = l * w = ft2 Pier Area
Wtc = (Af*t + Ap*h)*gconcrete = kips Concrete Weight
Wts = (Af - Ap)*gconcrete*f = kips Fill Material Weight

Loads transfered to the ground (for the calculation of soil max. pressure)
Nbase = Wtc + Wts + N  = kips
Mbase = F * (t + h) + M = kip-ft
e = Mbase / Nbase  = ft   eccentricity
L/6 = ft
L/2 = ft
e
          notatie fundatii 2.jpg     kip-ft

          kip


  Foundation Base
